Towing led advertising vehicle

May 21, 202102:17:06Comments
Excerpt

Hubei Chengli Automobile: Towing led advertising vehicle product model and parameter configuration, towing led advertising vehicle high-definition pictures, Chengli automobile series traction led advertising vehicle for the latest quotation, please call the customer service hotline. Parameter configuration Top configuration configuration traction led advertising vehicle shape size 6600#120; 1820X2650mm material 1.5mm thick steel car body front axle + rear axle brake front wheel brake, brake light tires 750 tires total mass 6000kgs minimum turning diameter 18000mm chassis configuration Traction…

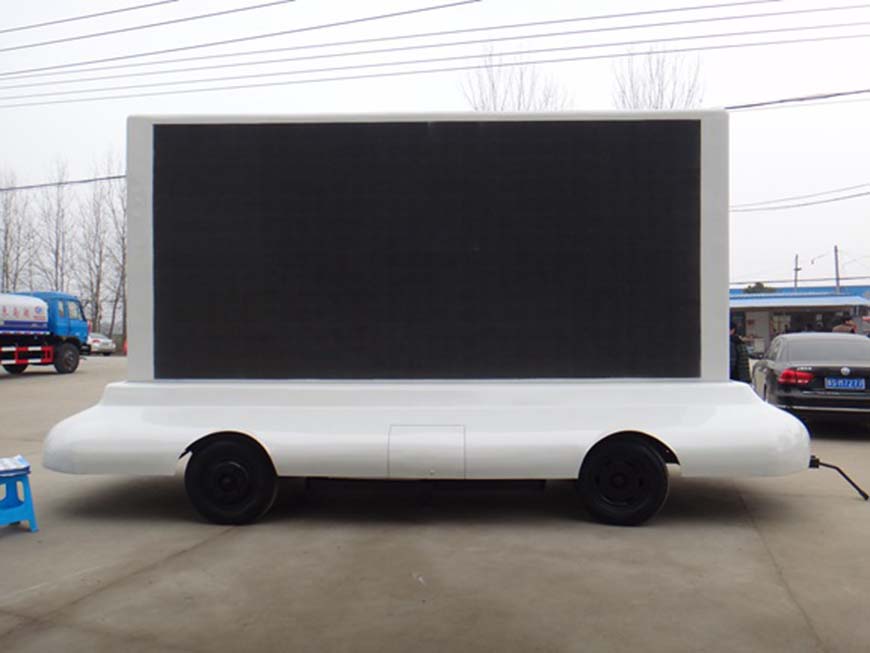

Towing led advertising vehicle

Towing led advertising vehicle

Parameter configuration of Towing led advertising vehicle
Upload configuration

Traction led advertising vehicle shape size 6600x1820X2650mm material 1.5mm thick steel truck body front axle + rear axle brake front wheel brake, 750 tires with brake lights total mass 6000kgs minimum turning diameter ≤ 18000mm

Chassis configuration

Traction led advertising vehicle hydraulic lifting platform Lifting method Scissor platform size 3200x750x400mm bearing 5 tons support stabilization system 4 hydraulic legs, a single leg can bear 5 tons screen folding control using hydraulic cylinders to push up the upper part of the screen To make the entire screen into a whole

Vehicle description

Traction led advertising vehicle Screen size 4800x2400mm Module size 160x160mm Die R/G/B: Taiwan Epistar pixel pitch 10mm Display brightness ≥6500cd/㎡ Pixel density 10000 dots/㎡ Maximum power ≤1000W/㎡ Screen life>100,000 hour

Pledge
After-sales service

Three guarantees of after-sales service for chassis and bodywork for one year or 30,000 kilometers

payment method

Prepaid deposit for production, pay the balance in installments before picking up the truck

installment

Down payment ratio 30%

Mode of transport

Come to the company to pick up or deliver the truck to the company's logistics department

Towing led advertising vehicle

Towing led advertising vehicle



Welcome to Chengli Special Automobile Co.,Ltd, any questions contact us via: sales@chengli.co
