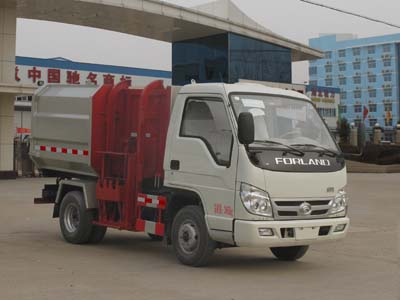

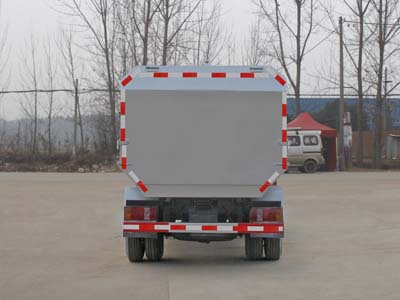

Foton small hanging bucket garbage truck
Features:
Foton small hanging bin garbage truck (CLW5041ZZZB5), chassis model BJ1042V9JB5-A1, emission standard GB17691-2005 Euro V GB3847-2005
Detailed vehicle parameters
The main technical data of the product of Foton Garbage Truck (CLW5041ZZZB5) | |||
product name | Foton Garbage Truck (CLW5041ZZZB5) | Dimensions (mm) | 4815×1840×2350 |
Chassis model | BJ1042V9JB5-A1 | Cargo compartment size (mm) | ×× |
Front passenger | 2 | Rated passenger (person) | |
Total mass (kg) | 4294 | Approach/departure angle (°) | 18/16 |
Rated mass (kg) | 1015 | Front suspension/rear suspension (mm) | 1115/1100 |
Curb weight (kg) | 3149 | Maximum speed (km/h) | 90 |
Emission Standards | GB17691-2005 Euro V, GB3847-2005 | ||
Vehicle description | 1. Protective material: Q235A carbon steel, vertical connection: the left and right sides and the rear lower part of the protection are all welded, the rear lower part of the protection section size (mm): 100×50, the rear lower part of the protection from the ground (mm): 38.2 The ABS system control method is: dual parameter control, 4S/4M. The ABS system controller model is: CM4Y. The ABS system controller manufacturer is: Guangzhou Comet Automobile Electronic Control Technology Co., Ltd. 3. Optional hanging iron Barrel device. 4. Vehicle color, text spraying and local details can be changed. |
Chassis parameters of Foton small Garbage Truck | |||
Chassis model | BJ1042V9JB5-A1 | Fuel type | Diesel oil |
Number of axes | 2 | Front track (mm) | 1345 |
Wheelbase (mm) | 2600, 2850 | Rear track (mm) | 1240,1280 |
Number of tires | 6 | Tire specifications | 6.00-15LT 10PR,6.00R15LT 10PR |
Engine Parameters of Foton Garbage Truck | |||
engine model | Engine manufacturer | Displacement (ml) | Power (kw) |
4A2-68C50 D19TCIE1 4A2-88C50 |
Anhui Quanchai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Anhui Quanchai Power Co., Ltd. | 2270 1912 2270 |
50 75 65 |
